In the world of networking, routers are the traffic cops, but switches are the connectors. While a router’s job is to connect different networks, a switch’s job is to connect multiple devices together within a single network. Understanding how a switch intelligently forwards data is a fundamental skill for any aspiring network engineer.
The Switch’s Main Job: Local Area Network (LAN) Communication
A network switch operates at Layer 2 (the Data Link Layer) of the OSI model. Its primary function is to receive data frames from one device and forward them to the specific device they are intended for, all on the same local network. This is a crucial distinction: a switch does not connect you to the internet; it connects your devices to each other and, eventually, to the router that provides internet access.
Key Concepts to Understand
To understand a switch’s intelligence, you need to know these two concepts:
- MAC Address: Every network-enabled device (like a computer, printer, or server) has a unique, permanent hardware address called a Media Access Control (MAC) address. The switch uses this address to identify devices on the network.
- MAC Address Table: This is the switch’s brain. It’s a database stored in the switch’s memory that maps the MAC address of a device to the specific port it is connected to.
How a Switch Works in Action
A switch is smarter than an old-school network hub, which would simply broadcast every data frame to every port. A switch learns and makes forwarding decisions in a three-step process:
- Learning: When a device sends a data frame to the switch, the switch examines the frame’s source MAC address. It then records that MAC address and the port it came from in its MAC address table. This is how the switch “learns” the location of every device on the network.
- Forwarding: When a data frame arrives, the switch looks at the destination MAC address. It then consults its MAC address table. If it finds a match, it forwards the frame only out of the specific port where the destination device is located. This is called unicast traffic.
- Flooding: If the switch receives a frame with a destination MAC address that isn’t in its table, it “floods” the frame by sending it out of every port except the one it came from. The device with the correct MAC address will respond, and the switch will then learn its location and update its table.
Analogy: A switch is like an intelligent delivery dispatcher in a large office building. When a package arrives (a data frame), the dispatcher (the switch) checks the address (the MAC address) and sends it directly to the correct office (the correct port), instead of sending a copy of the package to every single person in the building.

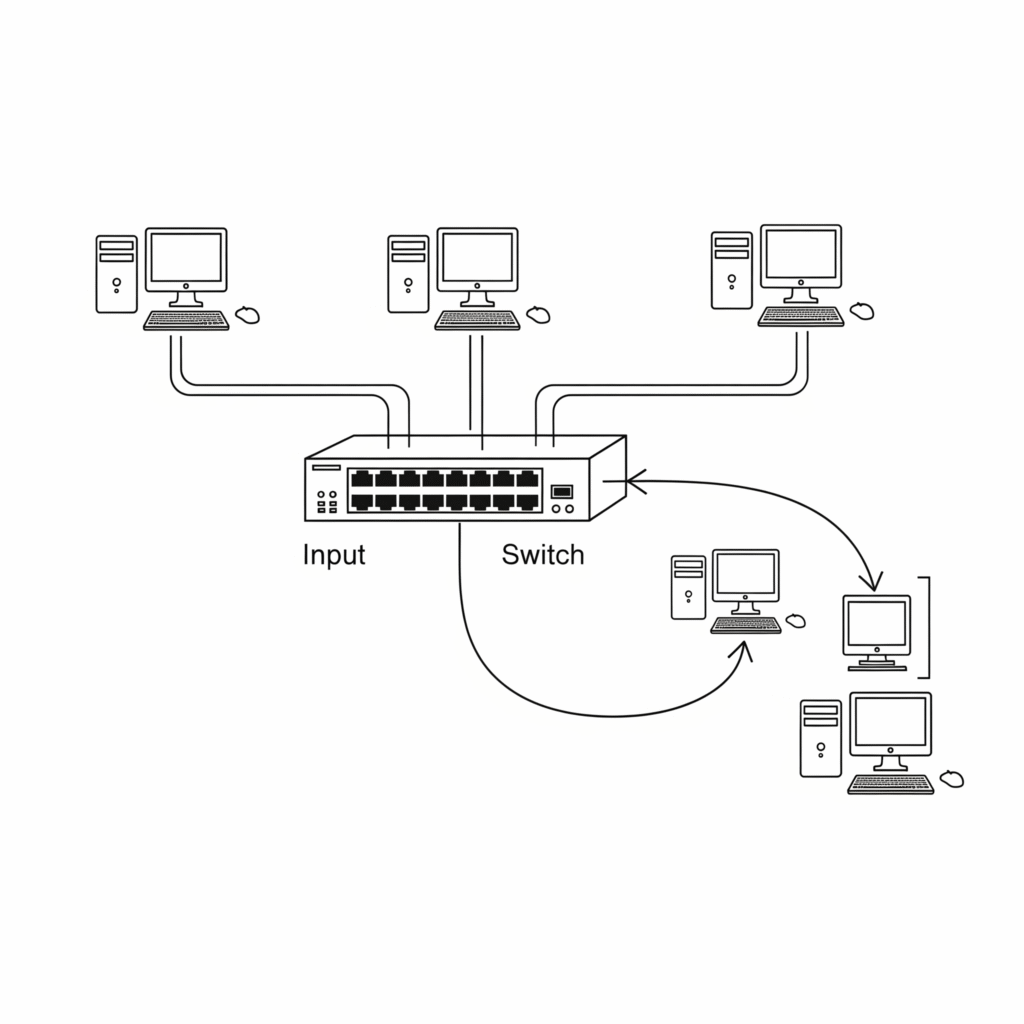

Here is a simplified illustration of how a switch connects devices on a local network.
